XC1000

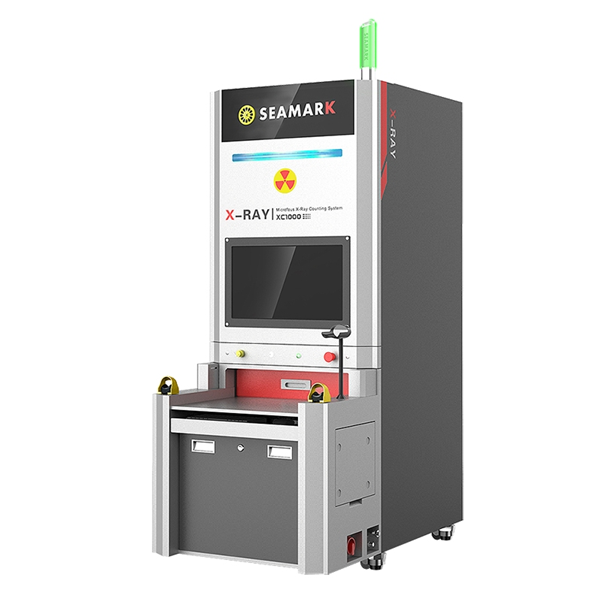

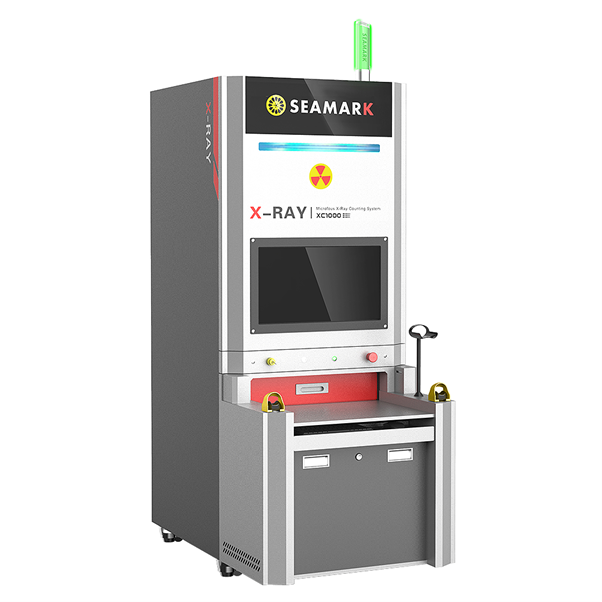

XC1000 Offline Reel Counter

Please contact us for a price estimation.

XC1000 is a micro-focus X-ray full-automatic counting machine. It uses X-Ray perspective principle and independently developed algorithm software with AI function, which can quickly and accurately calculate the number of materials in the material reel. It also has MES Data upload and automatic printing of material labels. To achieve the function of improving work efficiency and saving manpower.

Request Price

X-Ray Tube Source Specification

Type Sealed Micro-Focus X-Ray Tube
Voltage Range 80 KV
Operating Voltage Range 30-80KV
Operating Current Range 200 -700μA
Max Output Power 56W
Micro Focus Spot Size 30μm-40μm

Flat Panel Detector Specification

Type TFT Industrial Dynamic FPD
Pixel Matrix 3072×3072
Field of View 427mm×427mm
Resolution 3.6Lp/mm
Frame（1×1) 6fps
A/D Conversion Bit 16bits

General Specification

Dimensions L800mm×W1260mm×H1950mm
Input Power 220V 10A 50-60HZ
Max Sample Size 450mm×450mm
Control System Industrial PC WIN7/ WIN10 64bits
Net Weight Approx 800KG
Radiation ＜1μSv/h
